Mounting Systems For The Console

Patented SmartBracket Console
Mounting System


The best made, most functional sonar mounting system period! This Patent Pending and Award Winning Design places your sonar unit at just the right location, is fully adjustable and Rock Solid. Our SmartBracket adjustable mounting system accommodates screens of all sizes ranging from 7” inch to 12”. Any way you slice it, this commercial grade system has the most features and benefits for the serious fisherman. We have a mounting system to fit most consoles.

Patented SmartBracket Side by Side Console Mounting System


If a dual mount is your thing then this system is for you! This Patent Pending and Award Winning Design places your sonar unit at just the right location, is fully adjustable and Rock Solid. Our SmartBracket adjustable mounting system accommodates dual screens of all sizes ranging from 7” inch to 12”. This mounting system is commercial grade quality and has the most features and benefits for the serious fisherman. We have a mounting system to fit most consoles.

Multi-Use Mounting System


Featuring our Patented SmartBracket Mounting system, this product can be used in a variety of ways and is especially ideal for consoles that have a flat surface on top or limited mounting space. Works great on Bay Boats, Pontoons and boats that have a flat mounting surface on top. Also can be added to our larger Bow Replacement Panels and our Bow Mount Sonar Brackets to form a extra heavy duty mounting system. Overall length of base is 13″ with a Side Bracket Height of 6″ allowing use of larger screen sonar units.

  • Allows Sonar unit to be tilted to eliminate screen glare
  • Will accept most makes and models of Sonar Units.
  • Quick-Release knobs allow the Sonar Unit to be easily removed for storage.
  • Heavy Duty “Hammertone” Powder coated finish for years of maintenance free use.
  • Stainless Steel mounting hardware included.

Mounting Systems for the Bow

Bow Mount Sonar Bracket



The Original. Thousands sold. Can be used with or without recessed trolling motor pans and on both Fiberglass & Aluminum Boats. Hammertone powder coat finish. Mounting Hardware Included.

Wave Crusher Mount
(Shown with optional Bow Replacement Panel)



Can be used with a variety of Precision Sonar accessories to form a nearly indistructable mounting system. BIG Waves, Magnum Size Sonar Units.. no worry! Our Wave Crusher Mount can handle the biggest sonar units and take whatever Mother Nature dishes out. Extra Heavy Duty 1/4″ Aluminum Base & Side brackets. Interchangeable Delran Side Discs are Drilled and Tapped and secured to side brackets with Flat Head Cap Screws. Slotted Base for custom positioning. Hammertone Powder Coated Finish.

MEGA Mount



This mount has the muscle to handle even the largest (15″ & 16″ ) sonar units on the market.  Pre-drilled and tapped to accept an array of sonar accessories and can be used with our Over & Under (Stack) Mount for or Large Gimbal Bar for those who want dual mounts at the bow of their earlier model boats.  Add a pair of our SmartBrackets to form a Commercial Grade Bow Mount and the ultimate in reliability and protection. Measures 21″ L x 4 1/2″ W with a Bridge Measurement of 16 5/8″

Bow Mount Sonar Bracket
Gimbal Bar


If you already have an existing Bow Mount Sonar Bracket the Gimbal Bar can be added to make it a side by side mount for smaller to medium sized units. The Bow Mount Sonar Bracket & Gimbal Bar can be purchased as a combo. Note: 10” size and Larger sonar units require the use of our LARGE Side by Side Bow Mount Sonar Bracket.

Side by Side Bow Mount Sonar Bracket (Large)


This baby is for the BIG BOY Sonar Units! This extra wide, extra long, super heavy-duty mount is built to support the weight of two Large sized units. The inside width of the bracket allows the system to be offset to clear trolling motor, cables, etc. and the slotted mounting spaces on the top of the bracket, allows the Gimbal Mount Bar to slide in either direction for fine tuning. Includes Bow Mount Sonar Bracket and Gimbal Mount Bar pre-drilled and tapped to accept most factory gimbal mounts (Not Included) Stainless Steel Fastener package included.

Over and Under
Bow Mount System


For those of you that wish to run dual units at the bow and want a stackable mounting system, our Original Over & Under Mount is the berries! This system consists of our Bow Replacement Panel and our Over and Under Bow Bracket. With this set up the screens can be positioned at the same height making it easier to view both screens at once. Adjustable slotting allows for units of different size to be positioned to your preference. If you already have our Bow Replacement Panel set up for a gimbal mount, the Over and Under mount can be purchased separately.

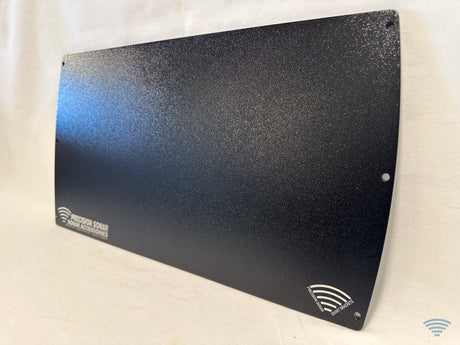

Bow Replacement Panels



If you want to mount your sonar unit on the very bow of the boat we have a Bow Panel to fit most makes and models of boats including the New Nitro Z series. Hammertone powder coat finish that’s as tough as nails. Predrilled to accept most factory gimbal mounts. Also available as a solid panel without gimbal mounting holes. Mounting Hardware included.

Discontinued Bow Replacement Panels

We offer in some cases Bow Replacement Panels that have been discontinued by the boat manufacturer. Ranger (VX, VS & Z Series), Skeeter (ZX Series) or possibly one of our existing new panels could work.






Console Mounting Systems for Older Boats

We offer a number of Console Mounting Systems for Ranger VX and VS & Z Series boats with Gauge Moving Plate packages. A select number of Skeeter console mounting systems are available for older iClass, FX & ZX Series boats. Also it’s possible that one of our existing rectangular mounting plates would adapt to the console of other brands.

Sonar Accessories

Ranger Gauge Relocation Plates



We offer Left, Right and 3 Hole Center VX & Z Series gauge relocation plates. Can be purchased as a package with our VX & Z Series Console mounting systems

Steering Wheel Spacer Kits



When added to the steering column they give the driver a little more room between the sonar unit and the wheel and for us short fellas it’ll bring the steering wheel closer to ‘ya! Fits standard 6 Bolt pattern and we have several sizes to choose from.

Steering Wheel Conversion Kit



Includes Upgrade Steering Wheel, 6 Bolt HUB Assembly & 3″ Wheel Spacer and bolts.

Cable Guard (Video)



Fits Minnkota Terrova, Ulterra, Ultrex and Motor Guide xi5 If you want to run an external transducer on one of these trolling motors this is the way to go. The transducer cable is housed in a heavy-duty coiled hose and attached to the top and bottom of the trolling motor shaft by a machined aluminum clamp. This positions the transducer cable away from the housing allowing the trolling motor to turn without binding the transducer cable. Easy to follow installation instructions.

Transducer Spacer



On earlier VS & VX series Ranger Boats as well as the 188, 518, 118 and the 117C and others with the smaller set back transom, the sides of the hull greatly diminish the SIDEVIEW image of the Lowrance Structurescan transducer. The Precision Sonar Transducer Spacer will lower the transducer to reduce the interference from the sides of the hull, resulting in improved Range and Quality of the Side Imaging.

DuraSafe Universal eLock®



The DuraSafe® Universal eLOCK® Replaces one factory knob from either side of an electronics unit to secure bracket-mounted electronics. A rubber cap shields the lock from the elements. Sold per pair and keyed alike.

Trolling Motor Lock for Minn Kota Ultrex



The locking knob replaces the top cap screw and will not allow the motor to be removed. Ultimate protection for your Ultrex

TotalScan Transducer
Trolling Motor Mount



Fits most MinnKota and Motor Guide Trolling Motors. Works with Lowrance Gen 3 and Carbon Touch Screen units so users can have both Side and Down Scan and 2D Sonar on their bow Sonar Unit.

Gimbal Mount Spacer



Can be used in a variety of applications. When added to the Phoenix 7 5/8 tall x 10 1/2″ wide Bow Replacement Panel and Backer Plate, the spacer will raise the factory gimbal mount just enough to clear the sides of the Bow Shroud and allow the use of larger sonar units. Predrilled and all necessary Hardware and Installation instructions to complete the project is included.
